SPECIFICATIONS

Brand Name: LanYuXuan

Magnification Ratio: 500X - 1500X

Origin: Mainland China

Certification: CE

Place of Origin: Jiangsu, China

Brand Name: Santos

Model Number: XT-SH01-T-4050

Warranty: 1 Year

Sensor: CMOS

Style: Dome Camera, PTZ camera

Function: PAN-TILT, NIGHT VISION, Waterproof / Weatherproof, Thermal image

Video Compression Format: H.265

Data Storage Options: NVR

Application: Outdoor

Technology: Pan / Tilt / Zoom

Type: Digital Camera

Resolution: 320x240 or 640x512

Lens: 19mm/50mm/75mm/100mm

Image Sensor: Vox

Keyword: thermal camera

Product name: Security Camera

Certificate: ISO FCC CE RoHS

IR Distance: 3000-4000m

Certification: ce, FCC, RoHS

Model	XT-SH01-T-4019	XT-SH01-T-4050	XT-SH01-T-4075	XT-SH01-T-40100
Sensor Type	Uncooled Vox Thermal	Uncooled Vox Thermal	Uncooled Vox Thermal	Uncooled Vox Thermal
Sensor Format	400x300 or 640x512	400x300 or 640x512	400x300 or 640x512	400x300 or 640x512
Spectral Band	7.5 ~ 13.5μm	7.5 ~ 13.5μm	7.5 ~ 13.5μm	7.5 ~ 13.5μm
Thermal Lens	19mm	50mm	75mm	100mm
Field of View	36°(H) ×27°(V)	14°(H) ×11°(V)	4.1°(H) ×3.6°(V)	2.3°(H) ×1.9°(V)
IFoV2	2 mrad	0.760 mrad	0.162 mrad	0.058 mrad
Detection	About 1600m	About 3800m	About 5500m	About 8000m
Recognition	About 390m	About 970m	About 1850m	About 2000m
NEdT	< 40 mK at F=1.0	< 40 mK at F=1.0	< 40 mK at F=1.0	< 40 mK at F=1.0
Frame	50Hz (PAL)	50Hz (PAL)	50Hz (PAL)	50Hz (PAL)
Focus	Adjustable	Adjustable	Adjustable	Adjustable
Digital Zoom	2X / 4X	2X / 4X	2X / 4X	2X / 4X
Image processing	DDE	DDE	DDE	DDE
Visible Camera	1st Option: 5.6mm-112mm Starlight 20X optical zoom,0.0002 Lux Low Light,2Mega pixel,HD IP
		2nd Option: 5.0mm-165mm Starlight 33X optical zoom,0.0002 Lux Low Light,2Mega pixel,HD IP
		3rd Option: 6.5mm-210mm Starlight 36X optical zoom,0.0002 Lux Low Light,2Mega pixel,HD IP
		4th Option: 6.8mm-320mm Starlight 39X optical zoom,0.0002 Lux Low Light,2Mega pixel,HD IP
		5th Option: 8.4mm-370mm Starlight 45X optical zoom,0.0002 Lux Low Light,2Mega pixel,HD IP
Connector	2 RJ45/BNC Connectors, One for thermal image output,another for visible camera output.

Mechanism Parameter
Pan range	360°
Tilt range	+90°~-90°
Pan speed	0~60°/s
Tilt Speed	0~40°/s
Pan preset speed	80°/s
Tilt preset speed	60°/s
Preset/track	128 preset,6 cruising tracks
Communication	Pelco D & Pelco P; 2400bps to 19200bps for optional,RS485 control
Auto pan speed	0.5~30°/s
Pattern tour	Four pattern tours ,each one can record 200s
4 Alarm in	Normal open, when closed alarm
1 Alarm out	NC/NO output
Power supply	AC24V±10%  or DC12V
Power consumption	50VA
Weight	8Kg
Installation	Wall Mount or Vehicle Mount
Relative humidity	10-90%RH
Work temperature	-40°C~+60°C
IP grade	IP66



Q: Are you trading company or manufacturer?
A: We are 15th year history long range night vision & day vision camera factory in China.
Also we are 10th year + alibaba golden membership.
We producing laser cameras night vision range from 400m to 5000m.
We producing thermal cameras night vision range from 1KM to 30KM.
Any long range night vision camera project,we always capable of working out a solution for you.

Q: How can your company ensure high quality?
A: As a experienced long range thermal & laser PTZ camera factory,quality should be always our first matter.
From raw material checking,our QC staff will fully test hardware waterproof capability and software boards.
Every single software boards will be checked from short circuit & electronic element soldering.

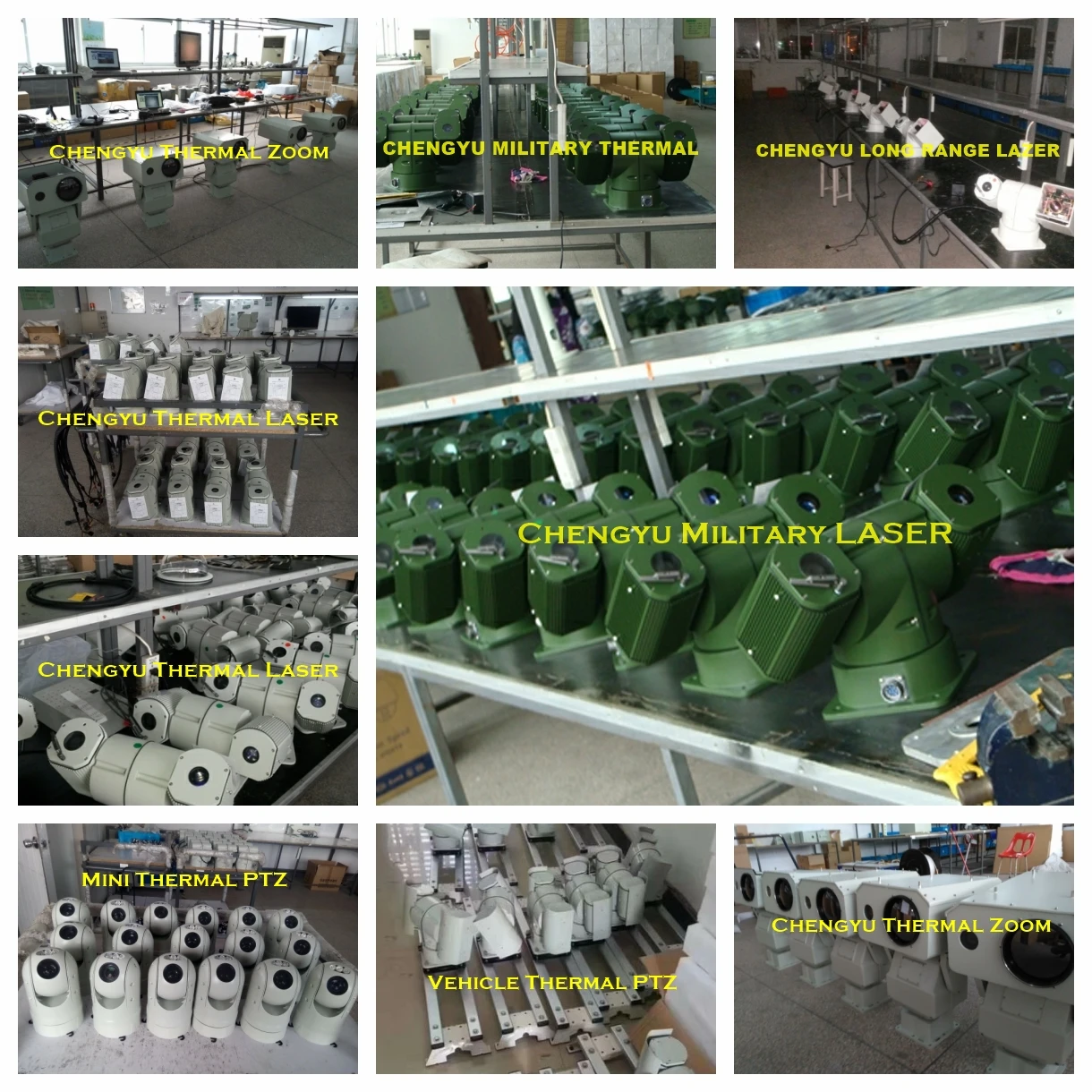

Afte finished assembly,our PTZ cameras will be put into +60 Centigrade high temperature aging tests for 48 hours.
Moreover,all of our finished cameras will be passed -40 frozen cold test before ship to all over the world.

Q: Why choose us?
A: At present,we served 110+ long range camera projects in more than 60 countries.
From north polar arctic region to the southest city Ushuaia in Argentina all has our sample projects.
We will recommend nearest reference project location for potential customers to visit for demo.
Certainly we warmly welcome your visit our factory directly for more detail camera requirement discussing.
Some of old customers feedback our thermal cameras shipped in 2009 still in well duty even till now.

Q: Do you have key customer list for our market survey?
A: Certainly. Our OEM & ODM partners including most famous international security brands.
Not only we provide OEM logo services,but also we are capable of designing new solution for you.
Please contact our sales team for more about our reference partner list.

Q: How to order from us?
A: 1stly, customers consult with our sales team for night vision range,and other ODM technical points.
2ndly,we will reply you the R&D period and delivery time according to your order quantity.
3rdly, our sales representative will draft proforma invoice with bank details for you.
4thly, your order will be placed to our production dept for PTZ assembly.
5thly, we will contact you for logistics matters 1 week before actual deliver date.
Our logistics support full range of transportation, sea-shipping,air-shipping,courier(DHL,Fedex,TNT etc)
Our package belongs to best of its kind from strengthened carton to strengthened wooden cases.

Q: How about your after-sale customer services?
A: Actually our after sale services started from goods shipping rather than goods arrived in destination.
During the logistics shipping,our sales team will take care of your order like our baby.
Timely tracking information & feedback and working out solution you if any accidental incident happened.
After goods arrived & applied in using,your technical support requests will be replied within 30 mins..
