SPECIFICATIONS

Brand Name: Auloda

Indoor/Outdoor Use: OUTDOOR

Video Capture Resolution: other

Camera Mount Type: Fixed Camera Mount

Camera Mount Type: other

Controller Battery: No include

Origin: Mainland China

Aerial Photography: No

Control Channels: 8 CHANNELS

Controller Mode: MODE1

Controller Mode: MODE2

Recommend Age: 14+y

Material: Carbon Fiber

Material: plastic

Material: Metal

Remote Distance: 2000 meters

Package Includes: Original Box

Remote Control: Yes

State of Assembly: Ready-to-Go

Type: HELICOPTER

Features: App-Controlled

Dimensions: 7.5 inch

Certification: CE

Flight Time: 12-30 min

Model Number: GEPRC Cinelog20 HD O3 AIR

Operator Skill Level: Intermediate

Operator Skill Level: expert

Charging Voltage: 14.8V

Motor: Brushless Motor

Charging Time: 30 minutes

Plugs Type: XT60

Power Source: Electric

Summary

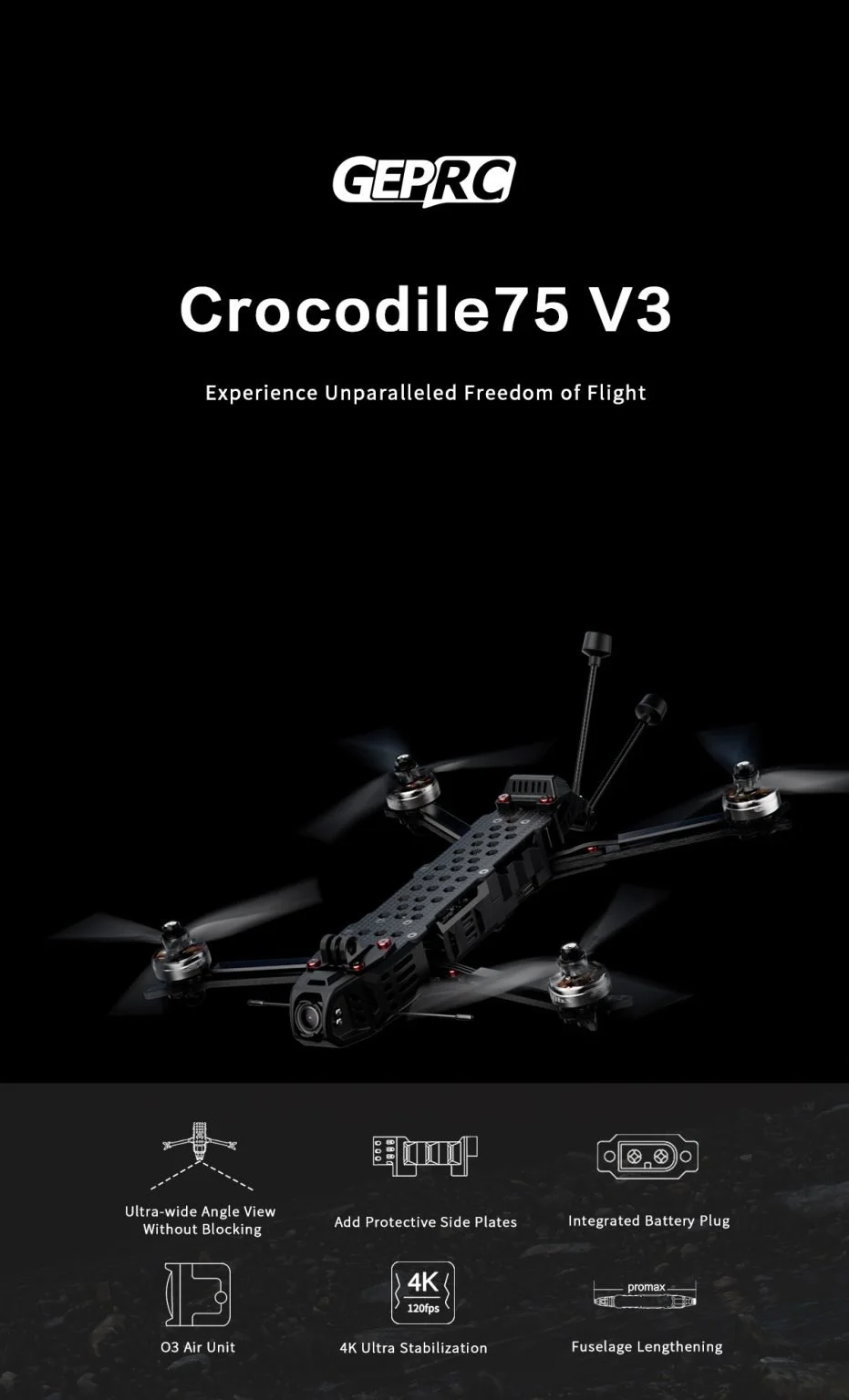

Throughout the whole journey, the GEPRC team keeps breaking through the boundary, innovating again in the field of long range FPV, and redefining the standard of long range, the high-performance long range FPV Crocodile75 V3 is officially released.

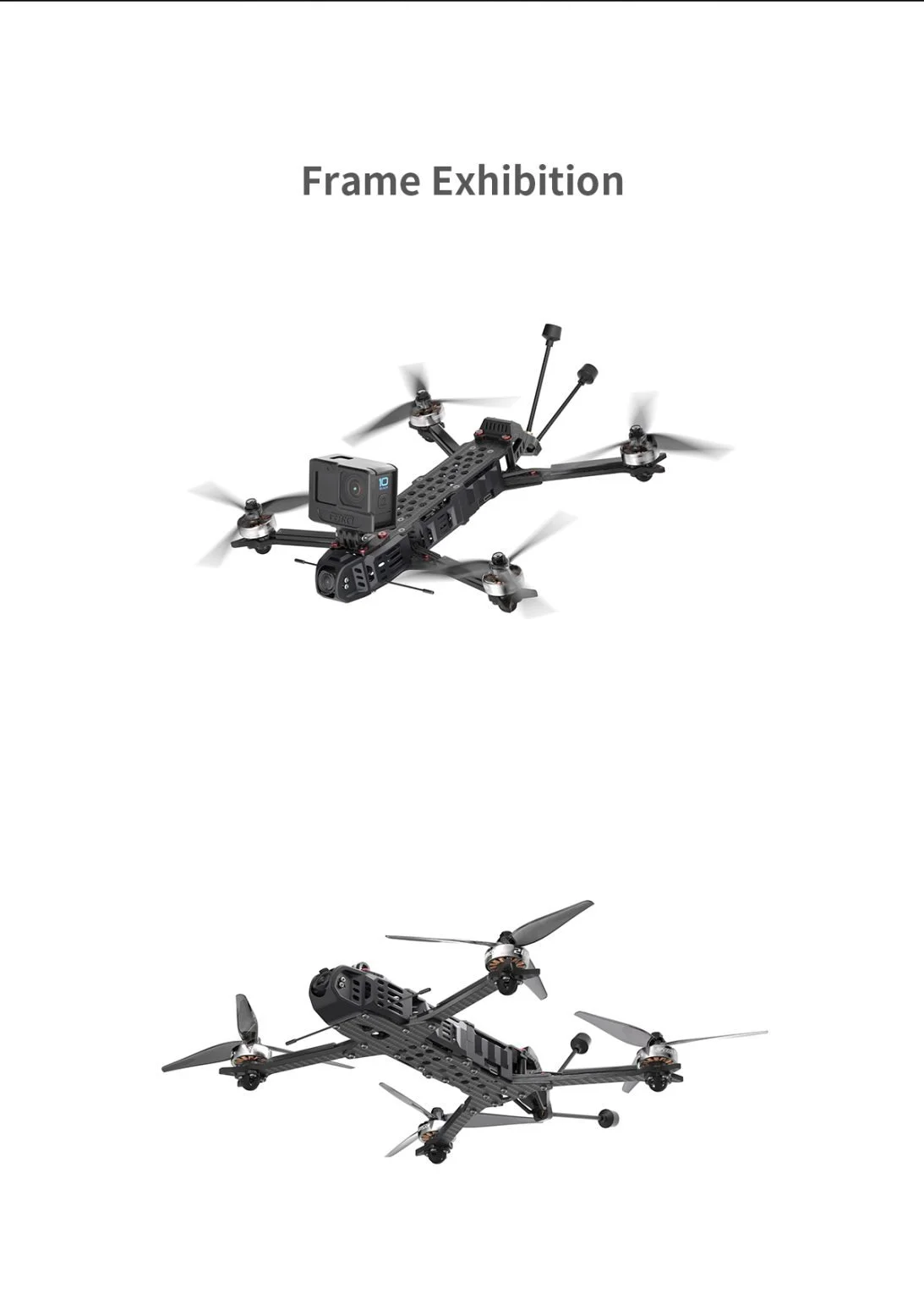

The appearance of the Crocodile75 V3 adopts a novel design, the overall structure is strengthened to effectively reduce the vibration of the fuselage and make the flight experience smoother and more stable.

The Crocodile75 V3 is equipped with an O3 Air Unit with additional special cooling components for an effective cooling environment.（Only included in HD O3 version, not included in analog version）

The battery plug is integrated with the fuselage for convenient application. The power is upgraded with SPAN G50A BLHeli_32 4IN1 ESC and 2806.5 1350KV motor, sufficient power. In terms of flight energy consumption, save power and efficiency.

The overall performance of Crocodile75 V3 has been carefully and strictly tuned by the GEPRC team to bring the most passionate flying experience for pilots.

Feature

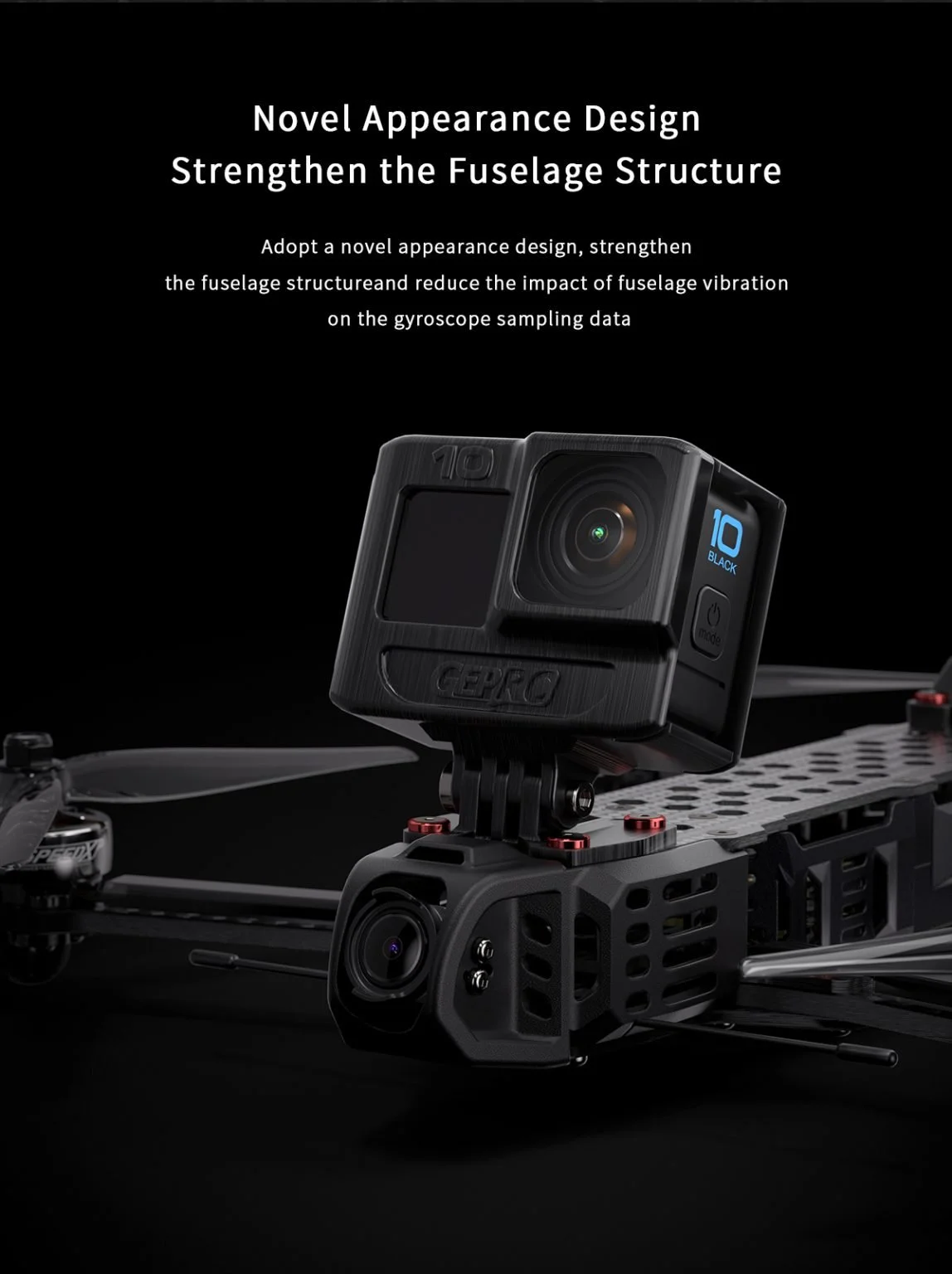

1. Adopt a novel appearance design, strengthen the fuselage structure, and reduce the impact of fuselage vibration on the gyroscope sampling data.

2. Equipped with SPEEDX2 2806.5 1350KV motor and HQ7.5×3.7×3 with sufficient power and high efficiency.

3. Upgrade the SPAN G50A BLHeli_32 4IN1.

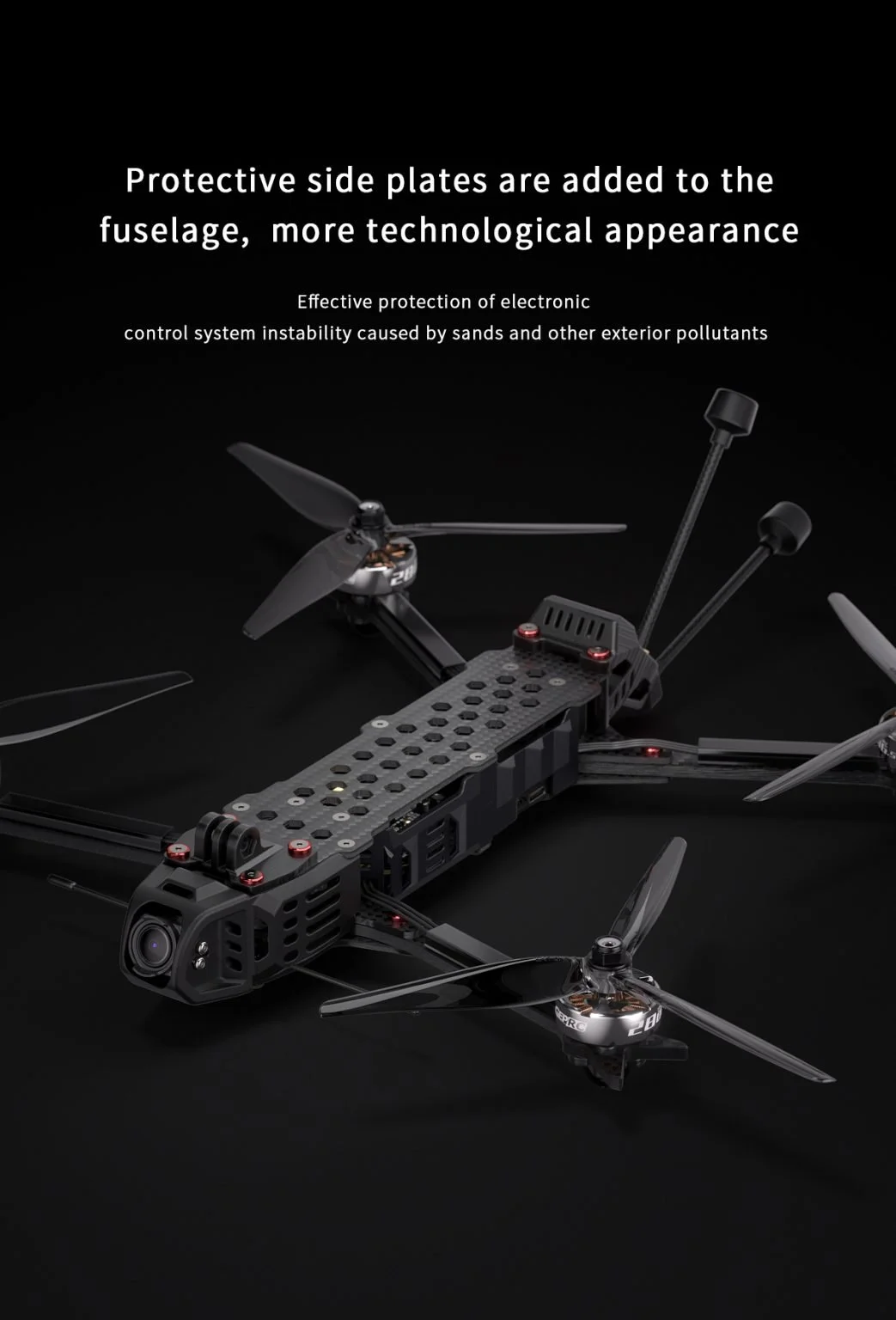

4. Add protective side panels to effectively protect the electronic control system from instability caused by sand and dust pollution

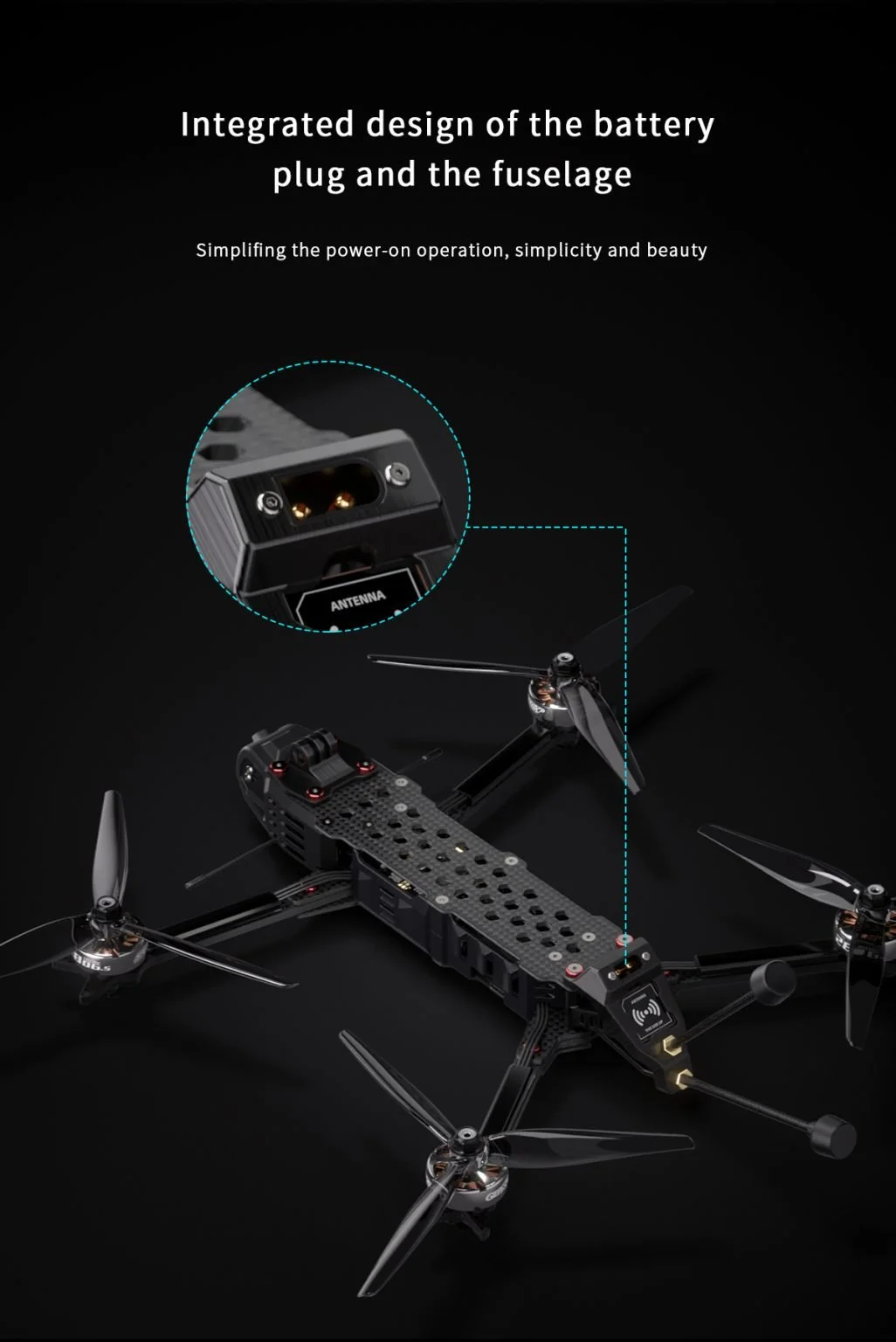

5. The integrated design of the battery plug and the body simplifies the power-on operation, simplicity and beauty.

6. Equipped with O3 Air Unit and added special heatsink, excellent heat dissipation, to avoid O3 Air Unit overheating and stop recording.（Only included in HD O3 version, not included in analog version）

7. The Crocodile75 V3 has a lengthier fuselage, can be mounted with Lipo 6S 3300mah-4500mah or Lion 6S 6000mah battery for flight.

8. Perfect match for 7-inch or 7.5-inch propellers

Specifications

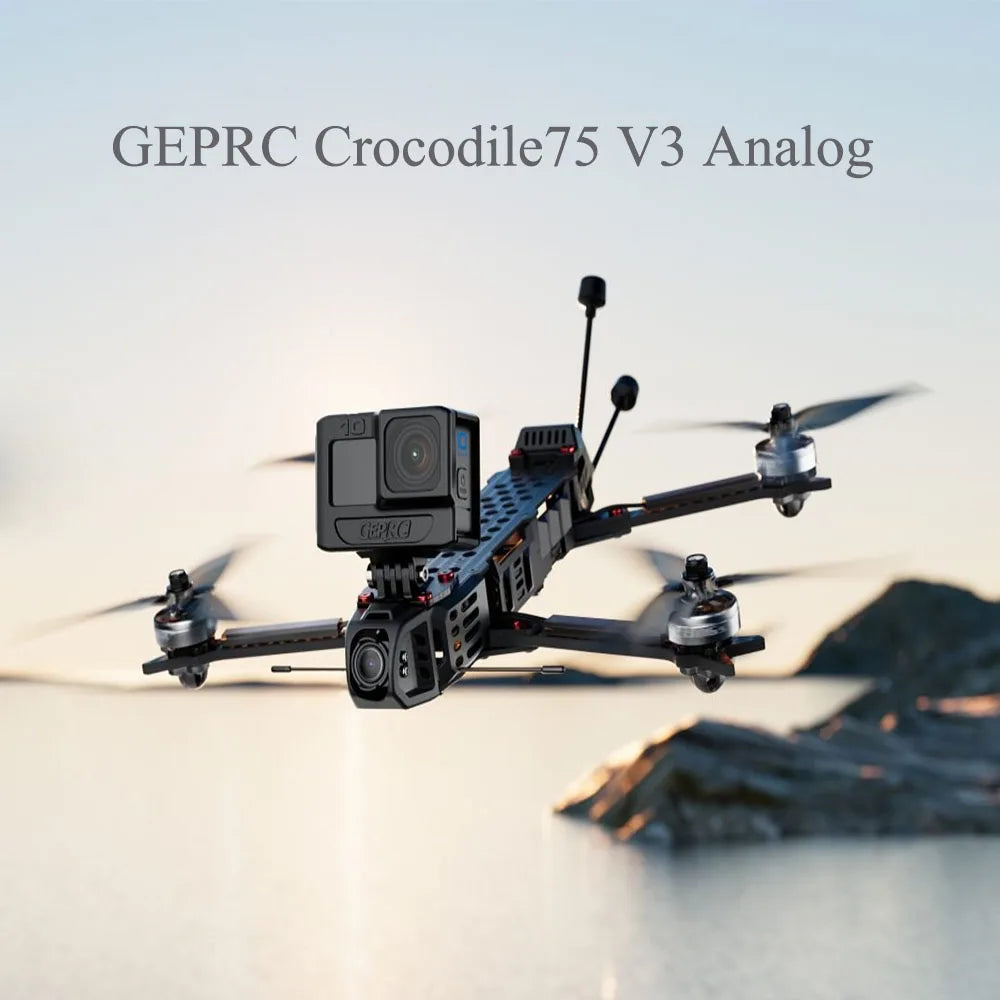

Model: Crocodile75 V3 Analog

Frame: GEP-LC75 V3

Wheelbase: 342mm

Top plate: 2.5mm

Bottom plate: 3.0mm

Arm plate: 6.0mm

Splint plate: 2.5mm

FC: SPAN F722-BT-HD V2

ESC: SPAN G50A BLHeli_32 4IN1

MCU:STM32F722RET6

Gyro: ICM 42688-P

OSD: Betaflight OSD w/AT7456E chip

VTX: GEPRC RAD 5.8G 1.6W

Camera: Caddx Ratel2

GPS:GEP-M10

Antenna: Momoda 5.8G RHCP SMA

Motor: SPEEDX2 2806.5 1350KV

Propeller: HQProp7.5×3.7×3

Weight: 597.5g

Receiver: PNP / TBS NanoRX / GEPRC ELRS 2.4G / GEPRC ELRS 915

Recommended battery: Lipo 6S 2600mah-4200mah / Lion 6S 6000mah

Flight time: 12-30 min

Includes

1 x Crocodile75 V3 Analog

4 x HQProp7.5×3.7×3

2 x M20*250mm battery strap

2 x Battery Silicone Pads

1 x Set of screws

1 x L-shaped screwdriver (1.5mm)

1 x L-shaped screwdriver (2mm)

1 x L-shaped screwdriver (3mm)

1 x M5 wrench

1 x Keychain

1 x GP Camera Base
