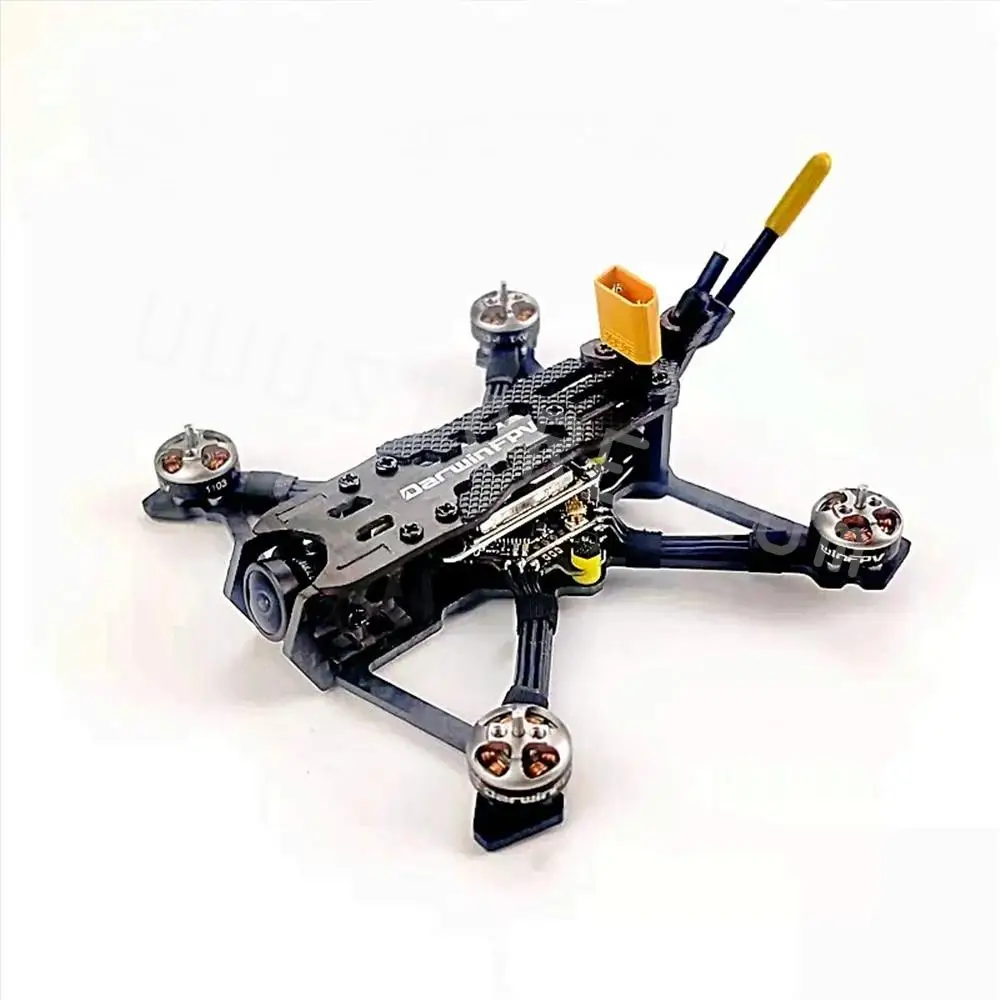

NEW DarwinFPV TinyAPE/TinyAPE Freestyle 2.5&2-3S FPV Racing Drone w/RunCam Nano 4 1103 Motor 5.8G VTX Thumb Camera Support ELRS
NEW DarwinFPV TinyAPE/TinyAPE Freestyle 2.5&2-3S FPV Racing Drone w/RunCam Nano 4 1103 Motor 5.8G VTX Thumb Camera Support ELRS
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: None
Indoor/Outdoor Use: OUTDOOR
Video Capture Resolution: other
Controller Mode: MODE2
Camera Mount Type: other
Material: Carbon Fiber
Controller Battery: 2
Origin: Mainland China
Remote Distance: 1000
Aerial Photography: Yes
Control Channels: 6 CHANNEL
Package Includes: Original Box
Remote Control: No
Type: HELICOPTER
Features: App-Controlled
Recommend Age: 12+y
Recommend Age: 18+
Model Number: TinyAPE
Tiny Ape Freestyle is the first 2.5'' drone from Darwinfpv. In order to meet the needs of more friends and we have made multiple attempts. It comes with the Darwin ELRS2.0 F411 15A Bluejay AIO and the VTX006 which has 25-600mW output power.
Configuration:
Brand: DarwinFPV
|
TinyAPE |
Tiny Ape Freestyle |
|
|
Weight |
50.3g (without batteries and paddles) |
50.3g (without batteries and paddles) |
|
Propeller |
Genfan 2512 3-blade propeller |
Genfan 2512 3-blade propeller |
|
FC&ESC |
F411 2S 15A FC (Built-in ELRS 2.4G receiver) |
F411 2S 15A FC (Built-in ELRS 2.4G receiver) |
|
Built-in Receiver Protocol |
SPI protocol |
SPI protocol |
|
Motor |
1103 8000KV Brushless Motor |
1103 8000KV Brushless Motor |
|
Camera |
Run Cam Nano 4 |
Run Cam Nano 4 |
|
VTX |
25-600mW VTX |
25-600mW VTX |
|
AIO Firmware |
betaflight_4.3.0_BETAFPVF4SX1280 |
betaflight_4.3.0_BETAFPVF4SX1280 |
|
ESC Firmware |
Bluejay_S_H_50_48_v0.14 |
Bluejay_S_H_50_48_v0.14 |
|
Recommended Battery |
2S 380-450mah (Not Included) |
2S 380-450mah (Not Included) |

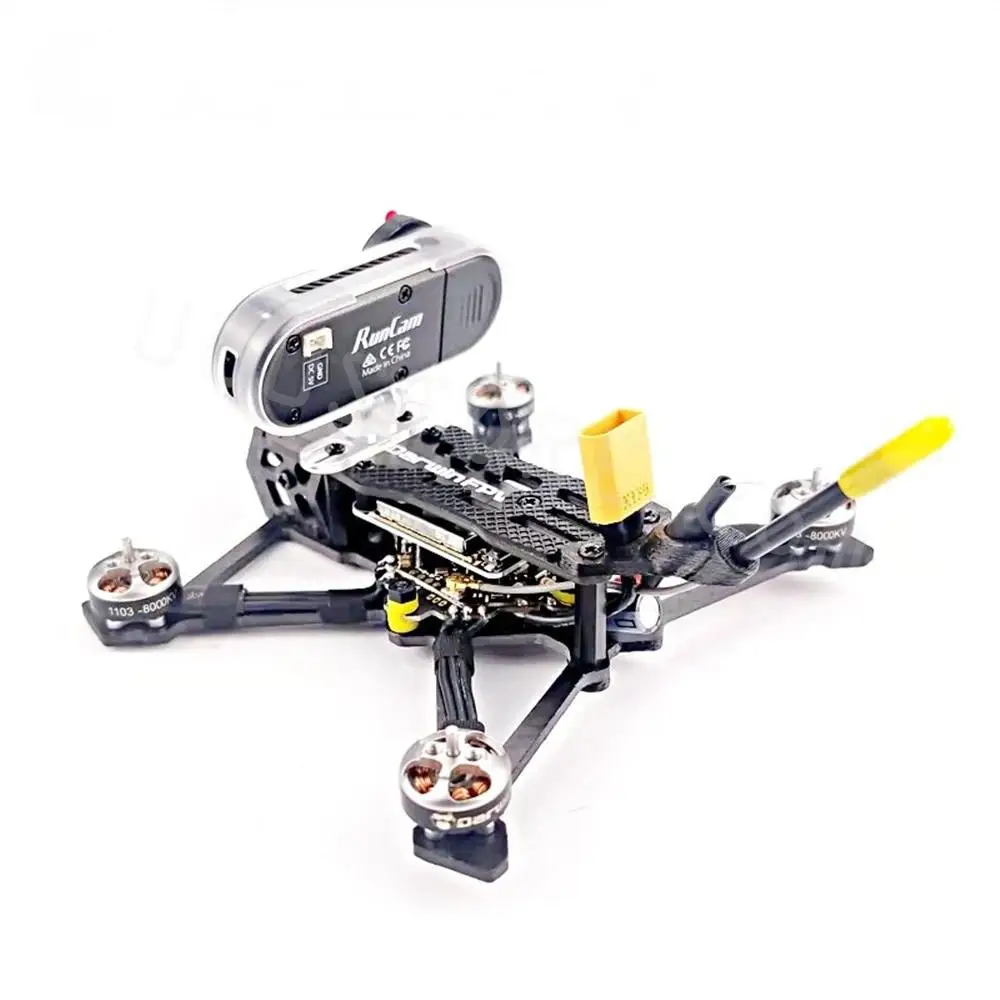

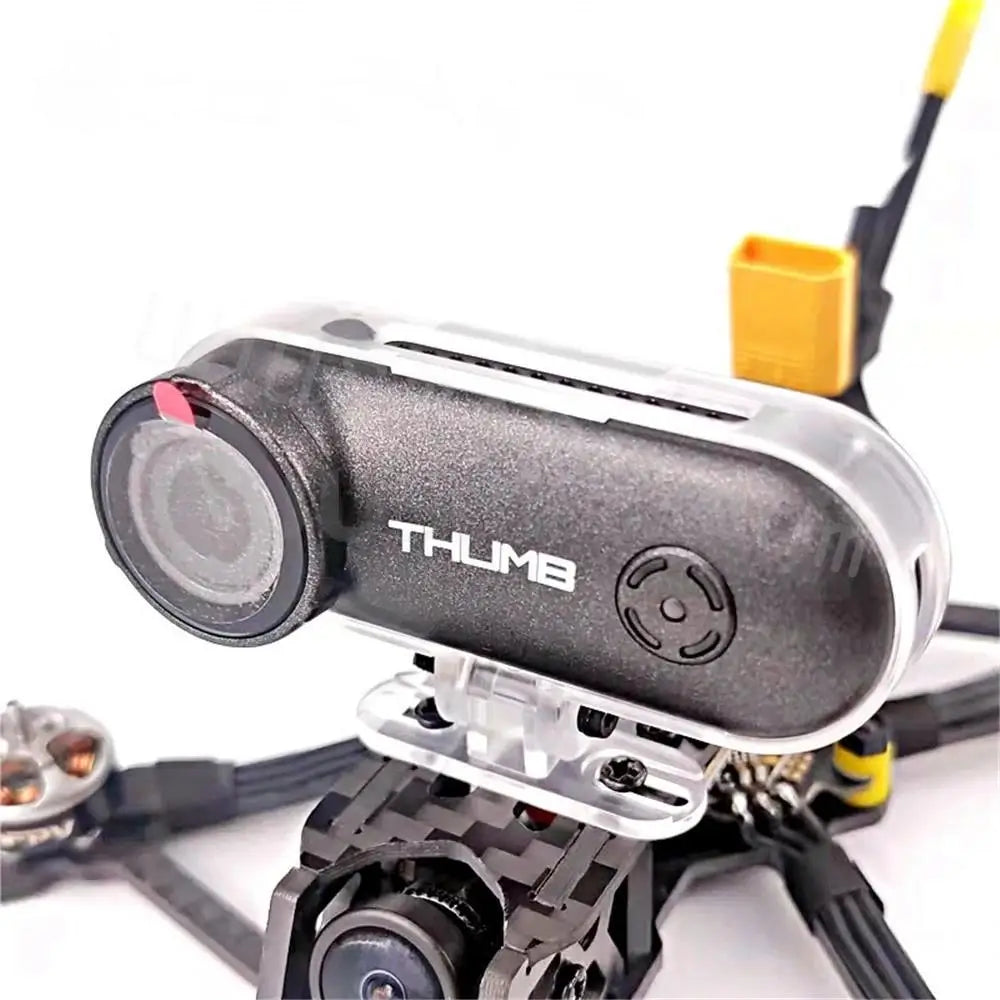

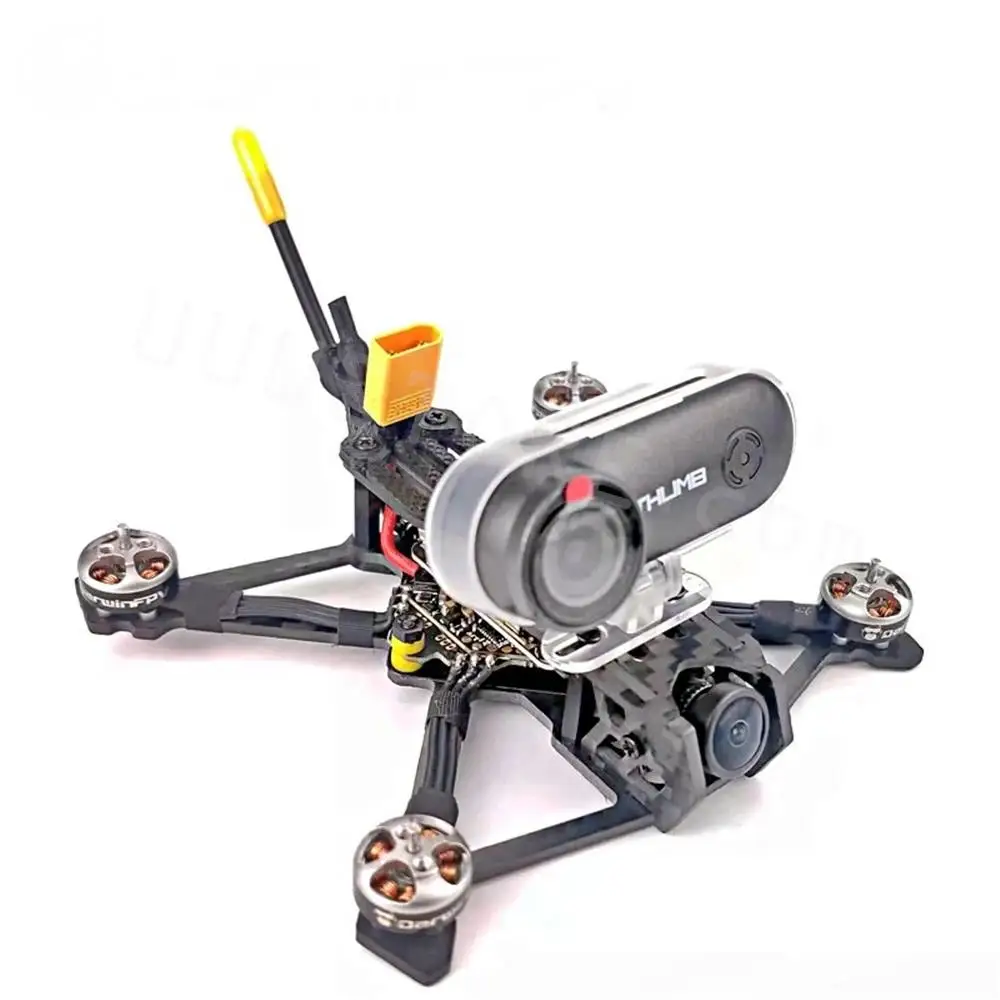

RunCam Thumb Camera |
Without RunCam Thumb Camera |
With RunCam Thumb Camera |
Factory AIO firmware just only support ELRS_V1.0 if you want to use it with the ELRS V2.0 version TX Module and you can programming
Betaflight V4.3.0 RC1-RC3. The name of the firmware is BETAFPVF4SX1280.
Run Cam Nano 4 Camera
The Run Cam Nano 4 uses a 1/3'' CMOS sensor, 2.1mm lens and 800TVL resolution for truer colors and clearer low-light night vision.

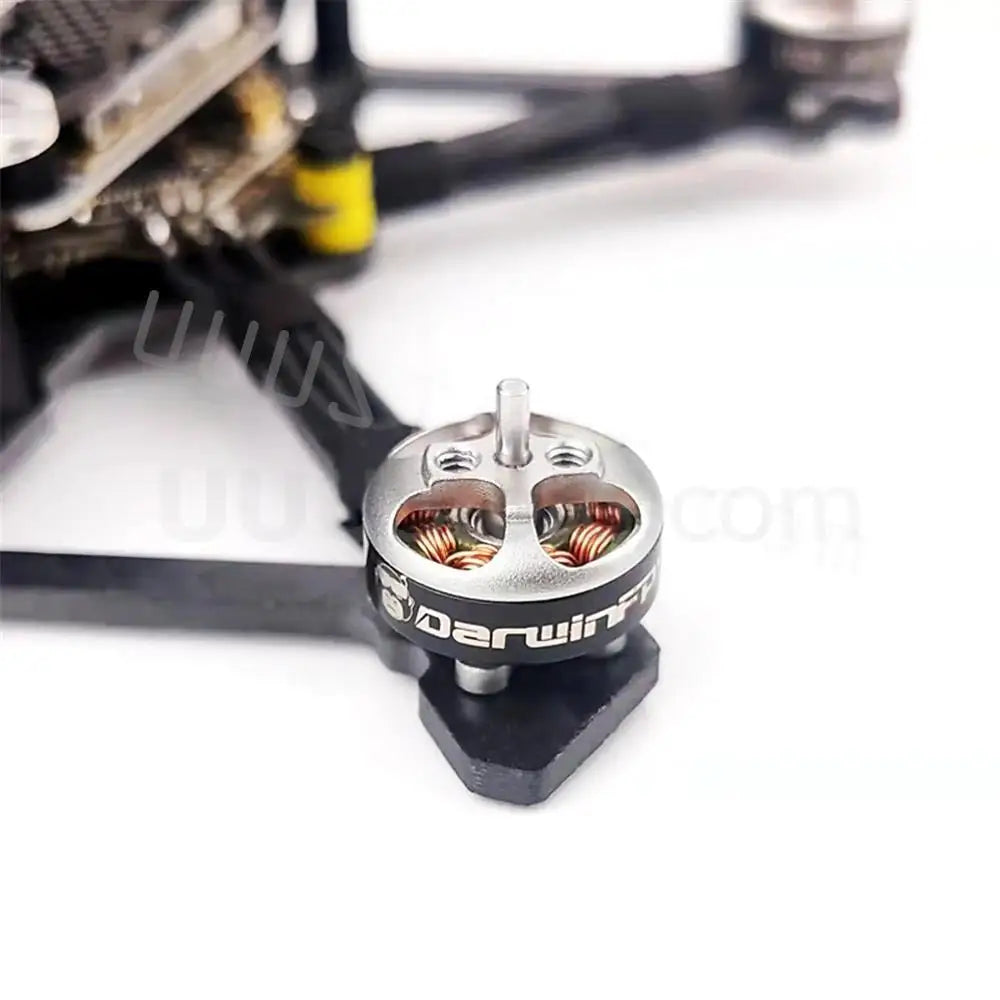

1103 8000KV Brushless motor
1103 8000KV Brushless motor is only 3.7g and it’s power and thrust are surprising, and the flight time is achieved? Minutes. We have notice: the motor only supports 2S batteries, and if it is connected to 3S to push the throttle too much the motor will be permanently damaged .
|
380mah（3S） |
450mah（2S） |
|
|
Landing voltage |
9.75V |
6.5V |
|
VTX Power |
400mW |
400mW |
|
Hover Time |
8.25min | 8.18min |
VTX
VTX006 has 25-600mW output power and can provide stable images and powerful transmission. You can choose the perfect output
power according to you FPV requirements. ( The default setting of the output power for Tiny Ape is 400mW)
|
Red light flashes frequency |
Power |
| 1 |
25mW |
| 2 |
200mW |
| 3 |
400mW |
| 4 |
600mW |
Flight Control(FC)
This is an updated version of Darwin AIO. We integrated the ELRS receiver on the FC to make it easier to apply to mini drones. The ESC
adopts Bluejay firmware, compatible with 1-3S Lipo input, 15A continuous current and 17A peak current. FC provides 2 sets of Uarts
interfaces, and also provides various external device interfaces such as SBUS, Softserial, CTR, BUZZ, RGB, etc., which perfectly solves the
problemof insufficient number of F411 Uarts.

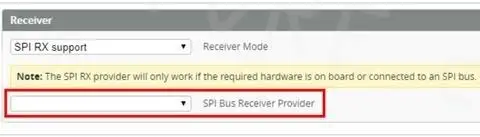

The built-in receiver is an SPI protocol receiver, so you need to select SPI receiver support (SPI RX support) in the betaflight configurator.
Under normal circumstances, the checkbox on the betaflight configurator receiver is empty. If the betaflight configurator used is 10.8.0 and above, the checkbox should select "EXPRESSLRS". As shown below.
Package Included:
1* DarwinFPV TinyAPE/ DarwinFPV TinyAPE Freestyle
